metallurgical cylinder Sold to Cote d 'Ivoire

This article mainly introduces:

Cote d 'Ivoire hydraulic cylinder,metallurgical cylinder manufacturer,metallurgical cylinder

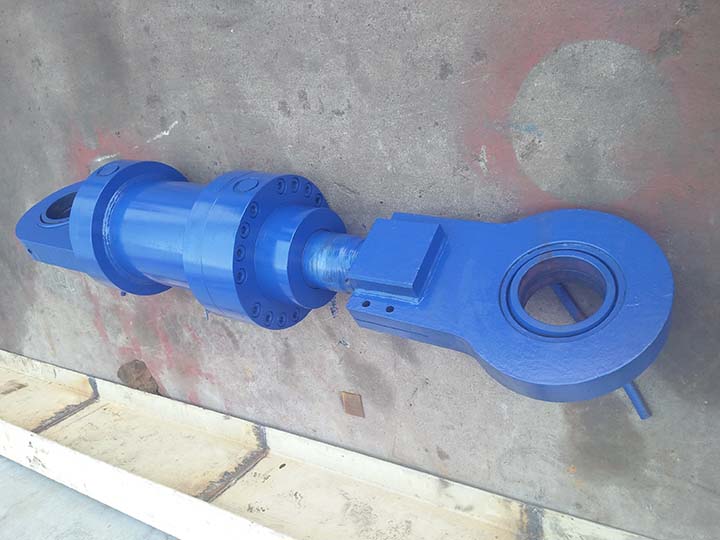

(Cote d 'Ivoire metallurgical cylinder,produced by Hengyu Group）

metallurgical cylinder are widely used in Cote d 'Ivoire，because of no transmission clearance，powerful torque，clever hydraulic energy conversion.So our company has designed metallurgical cylinder for customers from Cote d 'Ivoire.

Introduction to metallurgical cylinder:

What kind of process is used in the metallurgical cylinder to make high-quality metallurgical cylinder products: the body is the main component of the metallurgical cylinder, mining single pillar, hydraulic support, gun tube and other products, and its processing quality directly affects the life and reliability of the entire product. Body processing requirements are high, the internal surface roughness requirements are Ra0.4 ~ 0.8&um, the coaxiality, wear resistance requirements are strict. The basic feature of body is deep hole processing, which has always troubled the processing personnel. The metallurgical cylinder products of our company mainly use rolling processing, because the surface layer has surface residual compressive stress, which helps to close the surface micro-cracks and hinder the expansion of erosion. Thus, the corrosion resistance of the surface can be improved, and the fatigue crack can be delayed or expanded, and the fatigue strength of the body can be improved. The correct rolling process of the metallurgical cylinder block: broaching block - fine boring block - grinding block. The rolling method is: broaching block - fine boring block - rolling block, the process is 3 parts, but the time is compared: grinding 1 meter of the block is about 1-2 days, rolling 1 meter of the block is about 10-30 minutes. Input comparison: grinding machine or quilting machine (tens of thousands - millions), rolling knife (ten thousand - tens of thousands). After rolling, the surface roughness of the hole decreases from RA3.2-6.3um before rolling to RA0.4-0.8&um, the surface hardness of the hole increases by about 30%, and the fatigue strength of the inner surface of the metallurgical cylinder increases by 25%. If the service life of the metallurgical cylinder is only considered, it is increased by 2 to 3 times, and the efficiency of the boring and rolling process is about 3 times higher than that of the grinding process. metallurgical cylinder misoperation or operation failure may be caused by the following reasons, you can start from these aspects of the investigation: (1) spool stuck or valve hole blocked. When the spool of the flow valve or direction valve is stuck or the valve hole is blocked, the metallurgical cylinder is prone to misoperation or operation failure. At this time, the contamination of the oil should be checked; Check whether dirt or colloidal deposits are stuck in the spool or blocking the valve hole; Check the wear of the valve body, clean and replace the system filter, clean the fuel tank, and replace the hydraulic medium. (2) The piston rod and metallurgical cylinder are stuck or the metallurgical cylinder is blocked. At this time, no matter how to manipulate, the metallurgical cylinder does not move or moves very little. At this time, check whether the piston and piston rod seal is too tight, whether it enters the dirt and gum deposits: whether the shaft line of the piston rod and the metallurgical cylinder is in the center, whether the wearing parts and seals are invalid, and whether the load is too large.

When the metallurgical cylinder is in use, once the seal and guide support ring are found to be defective, the seal with the same structural form and appropriate material should be replaced according to the structural form of the metallurgical cylinder seal to be repaired, so as to minimize the thickness of the oil film between the seal and the sealing surface and reduce the leakage of the seal.

When the metallurgical cylinder is installed, the piston and the metallurgical cylinder head and other parts have large mass, large size and large inertia, even if there is a lifting equipment auxiliary installation, because the specified clearance is small, no matter how hard it will be put into, therefore, the end of the piston or the metallurgical cylinder head boss is easy to cause scars when it hits the inner surface of the metallurgical cylinder wall. The solution to this problem: for a large number of small products, the use of autocratic assembly oriented tools during installation; For heavy, thick and large large and medium-sized metallurgical cylinders, only careful and careful operation can be avoided.

Disassembly metallurgical cylinder: When disassembly metallurgical cylinder, strictly prevent damage to the screw thread at the top of the piston rod, the screw thread of the metallurgical cylinder head and the surface of the piston rod. It should also be noted that the piston cannot be played out from the metallurgical cylinder.

Answers to some questions about metallurgical cylinder:

What is the difference between hydraulic piston cylinder and plunger cylinder?
The force surface of the piston cylinder is a rod cavity and a rodless cavity, and the force surface of the plunger cylinder is the plunger, the spring return single-acting piston cylinder can also rely on the external force of the spring to achieve return, the double-acting piston cylinder can produce tension, and the plunger cylinder only produces thrust without tension.

When the hydraulic cylinder changes from fast to slow, how can the slow speed become more even and the speed can be adjusted?
Reversing valve set 2 reversing valves. The back of one valve goes directly to the cylinder, running at full speed for fast action. Add a speed control valve behind the other valve, and then connect to the cylinder to achieve slow action, you can adjust the opening of the speed control valve, to achieve the speed of the cylinder can be adjusted. An import speed control valve to more than 1,000 yuan, if you think it is too expensive, you can also use the throttle valve instead. However, the throttle valve is greatly affected by the load change.
