fig support cylinder(fig support cylinder,produced by Hebei Hengyu company）fig support cylinder are widely used ，because of powerful torque，clever hydraulic energy conversion，no transmissi

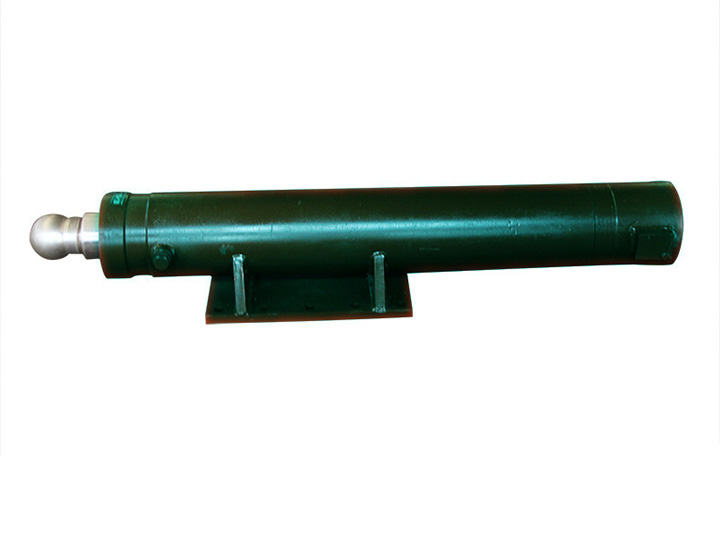

(fig support cylinder,produced by Hebei Hengyu company）
fig support cylinder are widely used ，because of powerful torque，clever hydraulic energy conversion，no transmission clearance.So our company has designed fig support cylinder for our customers.
The piston rod of the fig support cylinder has two kinds of solid rod and hollow rod, and one end of the hollow piston rod needs to be set aside for welding and heat treatment. The solid piston rod material is 35, 45 steel, and the hollow piston rod material is 35, 45 seamless steel pipe. After rough machining, the piston rod is conditioned to 229~285HB in India, and if necessary, the hardness is 45~55HRC after high-frequency quenching.
When the oil pressure of the fig support cylinder inlet is too low to reach the specified value, the leakage situation of the relevant oil system should be checked and the leakage should be eliminated; Check the piston and piston rod seal ring for damage, aging, loose and other phenomena; Check whether the hydraulic pump and pressure valve are faulty.
The fig support cylinder body is commonly made of No. 20, 35, 45 seamless steel pipe, and the steel pipe is honed or rolled to achieve the roughness requirement within 0.4μm. The low pressure fig support cylinder can use 20 steel pipe, and the high pressure fig support cylinder can use 45 steel pipe.
fig support cylinder piston rod material selection and requirements: ① piston rod is usually made of 45 steel. When there is a large impact force and heavy load transmission, it is made of 40Cr steel. This is to ensure that the piston rod has sufficient working strength. The piston rod is generally designed as a fig support cylinder, if the diameter is larger, the hollow piston rod can be used. Made of No. 45 seamless steel pipe. ③ When the piston rod is manufactured, the blank should be first forged and conditioned after mechanical rough processing, and the hardness of HB=230 ~ 250. The purpose of conditioning is to improve the machining performance and increase the working strength of the material. ④ The surface roughness Ra of the piston rod after finishing should not be greater than 0.65μm. ⑤ In order to improve the corrosion resistance of the piston rod, the working surface of the rod can be plated with hard chromium. ⑥ The piston rod and the end cap are guided by H8 ' fig support cylinder piston rod industry standard: piston rod diameter series of national recommended standard GB/T2348-1993. Piston rod thread size series standard GB/T2350-1980. Please refer to execute. There is no industry standard for piston rods Both the fig support cylinder and the hydraulic motor are devices that convert the pressure energy of the liquid into mechanical energy and output it. The fig support cylinder mainly outputs linear motion and force. The fig support cylinder has a variety of forms, according to the different characteristics of its mechanism it can be divided into piston type, plunger type and swing type three categories, according to the mode of action he can be divided into single action and double action. Piston fig support cylinder, plunger fig support cylinder is mainly used for: machinery, such as excavators; Scientific research, such as university structure laboratory. The plunger fig support cylinder is used for pressure testing machines, such as Jinan test, and the test machine is used for material testing.
What is the difference between hollow and solid oil cylinders?
Hollow solid cylinder, according to conventional understanding, refers to whether the piston rod is solid or hollow. General ordinary hydraulic cylinder, the piston rod is solid structure. Hollow hydraulic cylinder refers to a hollow piston rod structure of the hydraulic cylinder, see the attached figure. Piston rod hollow function: 1, the piston rod hollow, the middle can be threaded rod. For example, the clamping cylinder with a sawing machine, the piston rod center threading rod, part of the stroke through manual, part of the stroke hydraulic automatic walk. 2, the hollow hole of the piston rod can be used to direct the oil circuit to achieve special oil circuit. 3, the cylinder is relatively large, the piston rod is relatively large, and the stroke is longer, in this case, the piston rod is hollow to reduce the movement friction and lateral force.
When there is only one hole in the oil inlet and outlet of the hydraulic cylinder, will there be oil leakage?
It is a single acting oil cylinder. This oil cylinder is always driven by hydraulic oil in advance, and is generally pulled back by the spring at the bottom of the piston or the weight of the cylinder piston or the load. But either way, it has nothing to do with any internal leakage. Whether the oil is internally drained is related to the sealing and accuracy of the cylinder itself.
