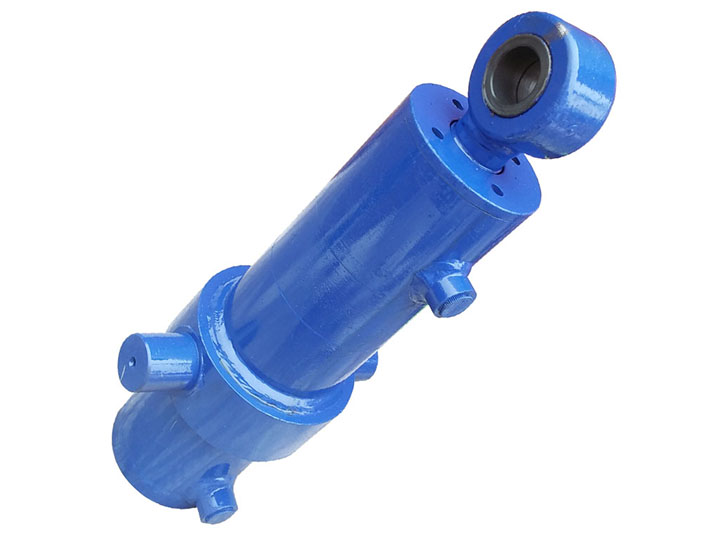

hinge shaft cylinder(hinge shaft cylinder,produced by Hengyu Group）hinge shaft cylinder are widely used ，because of excellent temperature resistance，no transmissio
(hinge shaft cylinder,produced by Hengyu Group）
hinge shaft cylinder are widely used ，because of excellent temperature resistance，no transmission clearance，powerful torque.So our company has designed hinge shaft cylinder for our customers.
hinge shaft cylinder head explanation: low pressure castings, medium and low pressure with HT300 gray iron, medium and high pressure with 35, 45 steel. When the hinge shaft cylinder head itself is the guide sleeve of the piston rod, the hinge shaft cylinder head is best cast iron. At the same time, brass, bronze or other wear-resistant materials should be fused on the guide surface. If the guide sleeve is pressed into the hinge shaft cylinder head, the guide sleeve shall be wear-resistant cast iron, bronze or brass.
Classification of hinge shaft cylinder: according to the mode of movement it can be divided into linear reciprocating movement type and rotary swing type; According to the effect of liquid pressure, it can be divided into single acting type and double acting type. According to the structure, it can be divided into piston type, plunger type, multistage telescopic sleeve type, pinion and rack type, etc. According to the installation form can be divided into rod, earring, foot, hinge shaft and so on; According to the pressure grade can be divided into 16Mpa, 25Mpa, 31.5Mpa and so on.
The cavitation of the hinge shaft cylinder has a great influence, and to avoid it, it is necessary to use the hydraulic oil reasonably and ensure the quality of the hydraulic oil. If the anti-foam property of the oil is poor, it is easy to produce foam, resulting in cavitation. Secondly, the change frequency of oil pressure is too fast and too high, which will also directly cause the formation of bubbles and accelerate the rupture rate of bubbles. The test shows that the speed of cavitation will be accelerated in the part with high frequency of pressure change. For example, at the inlet and outlet of the hinge shaft cylinder, due to the relatively high frequency of pressure changes, the degree of cavitation is also relatively higher than that of other parts. In addition, overheating of the oil will also increase the probability of cavitation.
hinge shaft cylinder can not drive the load troubleshooting: oil pressure is too low. hinge shaft cylinder selection specifications are too small. Leakage in hinge shaft cylinder or associated hydraulic system element.
How to calculate the inner diameter of the hydraulic cylinder?
These two parameters need the following information to decide: 1, pump displacement, speed (to get the actual output flow of the pump) 2, three and time requirements (lift time, drop time takes a few seconds) and then view the close cylinder series according to the results. Select the right cylinder.
How does the clamping cylinder work?
Hydraulic transmission principle: oil as the working medium, through the change of the sealing volume to transfer movement, through the internal pressure of the oil to transfer power. 1. The power part - converts the mechanical energy of the prime mover into the pressure energy of the oil (hydraulic energy). For example: hydraulic pump. 2, The executive part - the hydraulic pump input oil pressure energy into the mechanical energy to drive the working mechanism. For example: hydraulic cylinder, hydraulic motor. 3, The control part - used to control and adjust the oil pressure, flow and flow direction. For example: pressure control valve, flow control valve and direction control valve. 4, The auxiliary part - the first three parts are connected together to form a system, which plays the role of oil storage, filtration, measurement and sealing.
